SACHS CLUTCH KIT 228MM — BMW 320i / 323i / 325i / 520i / 525i
SACHS CLUTCH KIT 228MM — BMW 320i / 323i / 325i / 520i / 525i
In Stock. Ready to Ship.
Couldn't load pickup availability
228 mm · 10 teeth · 3 yr warranty
!
Engine-specific — check before you order. This is the 228 mm clutch for the 320i / 323i / 325i sixes and the td / tds diesels. It does not fit 316i, 318i, 328i or M3 — those take a different diameter.
Does it fit your car?
01Overview
SACHS complete clutch kit — 228 mm, 10-tooth spline. This is the one that fits the E36 320i, 323i and 325i, plus the td and tds diesels across E30, E34 and E39.
SACHS supplies the clutch on BMW's own production line, so this is the same engineering that left the factory, not a copy of it.
Three-year warranty.
SACHS supplies the clutch on BMW's own production line, so this is the same engineering that left the factory, not a copy of it.
Three-year warranty.

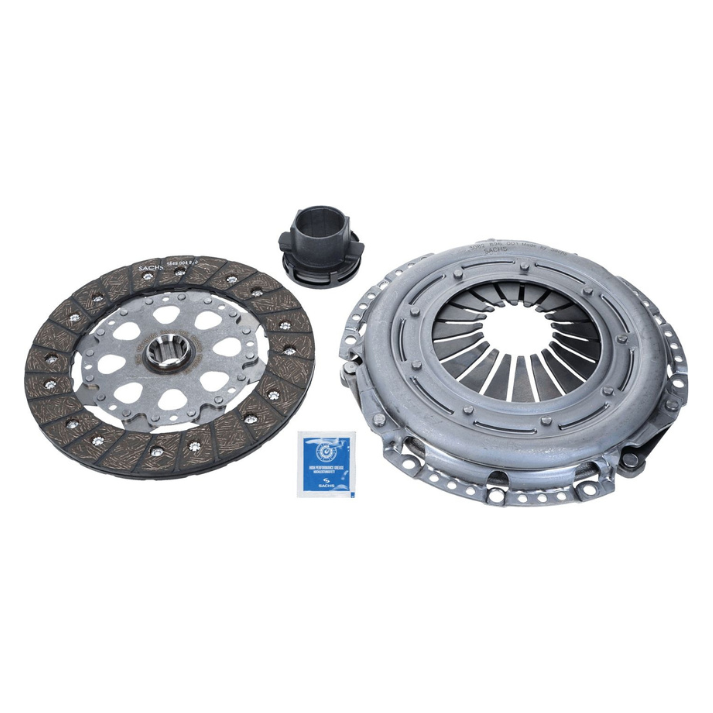

02In The Kit
Kit number
3000 133 002

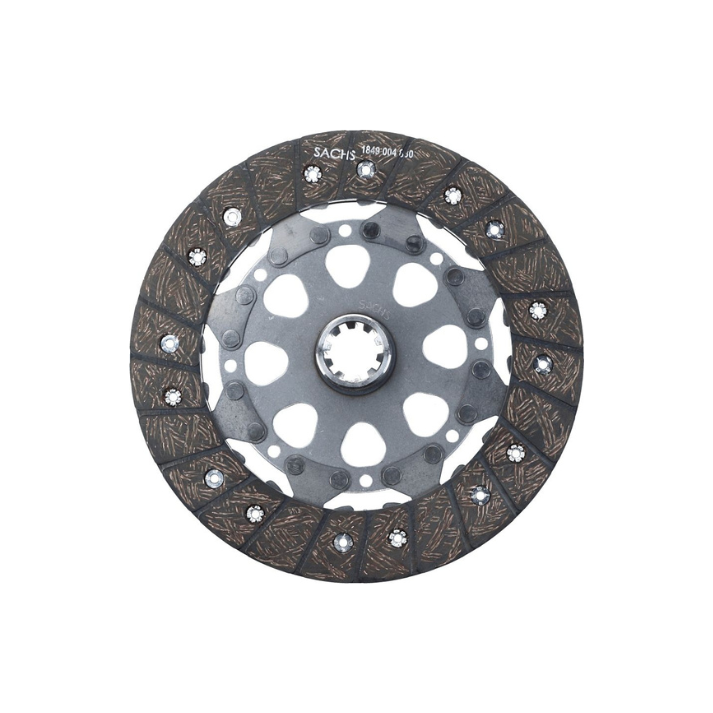

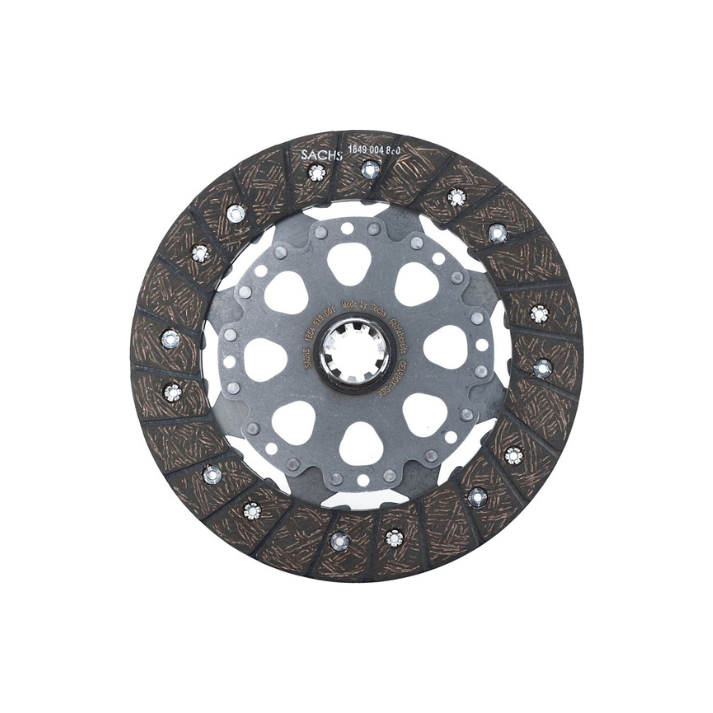

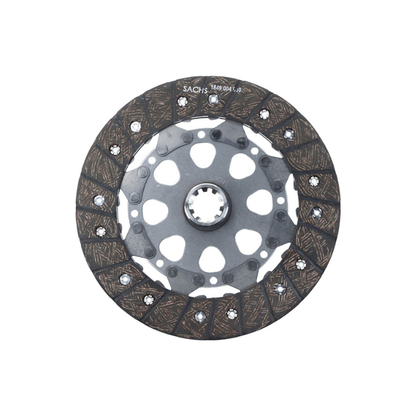

Clutch disc
SACHS1864 919 001
SACHS1864 919 001

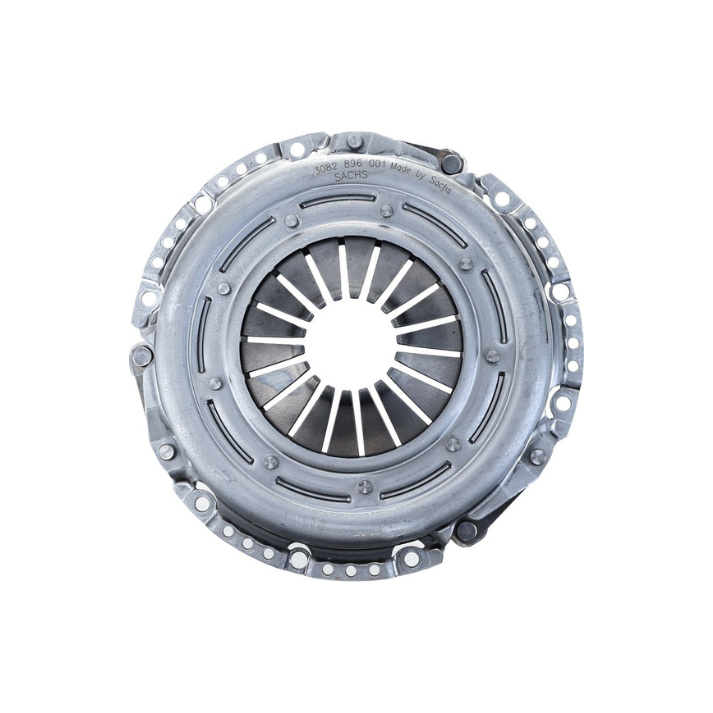

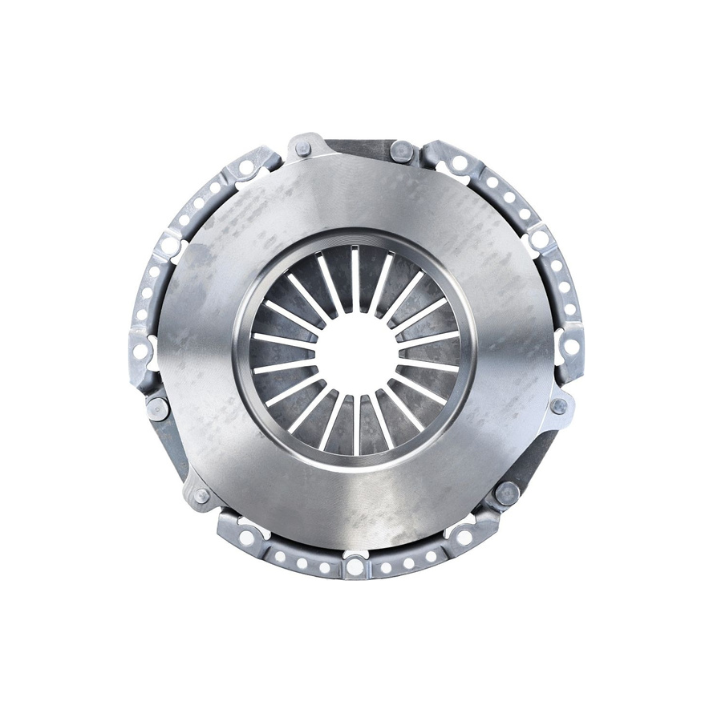

Pressure plate
SACHS3082 634 110
SACHS3082 634 110

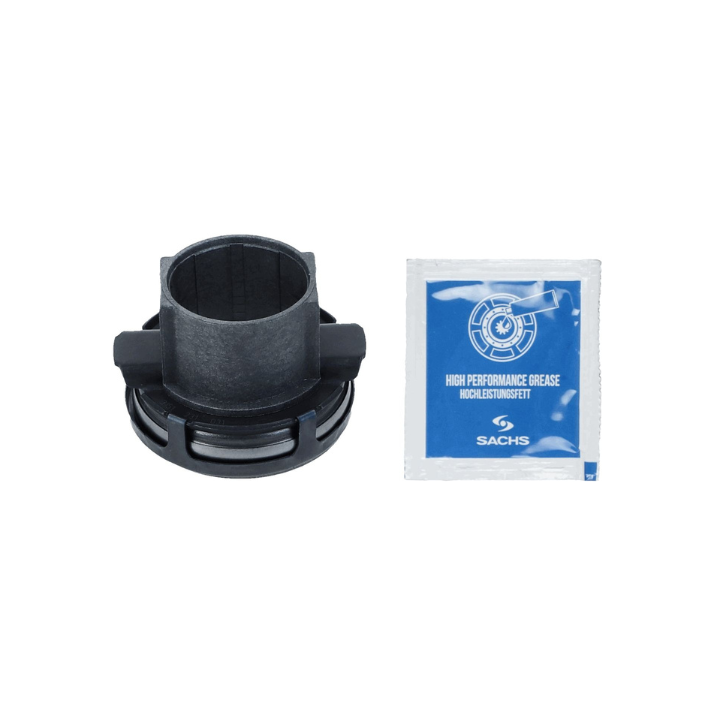

Release bearing
SACHS3151 231 031
SACHS3151 231 031
Spline grease
SACHS4200 080 060
SACHS4200 080 060
Everything needed for the clutch itself. The flywheel, slave cylinder and gearbox seals are separate parts — worth checking while the box is out.
03Specification
Diameter228 mm
Spline teeth10
Supplied asComplete kit
Warranty3 years
TecDoc no.3000 133 002
Replaces
superseded SACHS numbers3000 133 001
3000 649 001
superseded SACHS numbers3000 133 001
3000 649 001
04OE Numbers
Cross-references BMW OE numbers including:
If your old part carries one of these numbers, this kit replaces it.
If your old part carries one of these numbers, this kit replaces it.
05Fitment
Fits BMW variants across five chassis.
Use the search above to confirm your exact engine and build year.
Use the search above to confirm your exact engine and build year.
