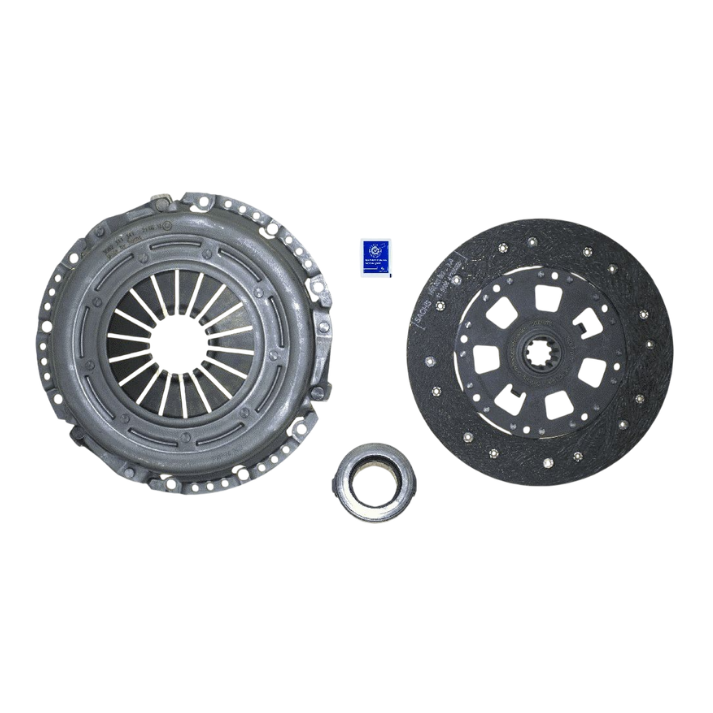

SACHS CLUTCH KIT 240MM — BMW E36 328i / 323i / E39 528i / Z3 2.8i
SACHS CLUTCH KIT 240MM — BMW E36 328i / 323i / E39 528i / Z3 2.8i
In Stock. Ready to Ship.
Couldn't load pickup availability
240 mm · 10 teeth · 3 yr warranty
!
This is the E36-generation 240 mm kit. For the M52 2.8 six and the 323i. It does not fit the 3.0 engines (330i, 530i, Z3 3.0i) or any E46 — those take kit 3000 970 095.
Does it fit your car?
01Overview
SACHS complete clutch kit — 240 mm, 10-tooth spline. This is the kit for the E36 328i and 323i, plus the E39 528i, E38 728i, Z3 2.8i and the 525/725 tds diesels.
SACHS supplies the clutch on BMW's own production line, so this is the same engineering that left the factory, not a copy of it.
Three-year warranty.
SACHS supplies the clutch on BMW's own production line, so this is the same engineering that left the factory, not a copy of it.
Three-year warranty.
02In The Kit
Kit number
3000 724 001
Clutch disc & pressure plate
matched pair, 240 mmincluded
matched pair, 240 mmincluded
Release bearing
SACHS3151 231 031
SACHS3151 231 031
Spline grease
SACHS4200 080 060
SACHS4200 080 060
Everything needed for the clutch itself. The flywheel, slave cylinder and gearbox seals are separate parts — worth checking while the box is out.
03Specification
Diameter240 mm
Spline teeth10
Supplied asComplete kit
Warranty3 years
TecDoc no.3000 724 001
04OE Numbers
Cross-references BMW OE numbers including:
If your old part carries one of these numbers, this kit replaces it.
If your old part carries one of these numbers, this kit replaces it.
05Fitment
Fits BMW variants across four chassis.
On E39, E38 and Z3 the production date decides between this kit and 3000 970 095 — if your car is a late build, message us with the VIN and we'll confirm which one you need.
On E39, E38 and Z3 the production date decides between this kit and 3000 970 095 — if your car is a late build, message us with the VIN and we'll confirm which one you need.
