M50/M52 SPORT SUPERSPRINT

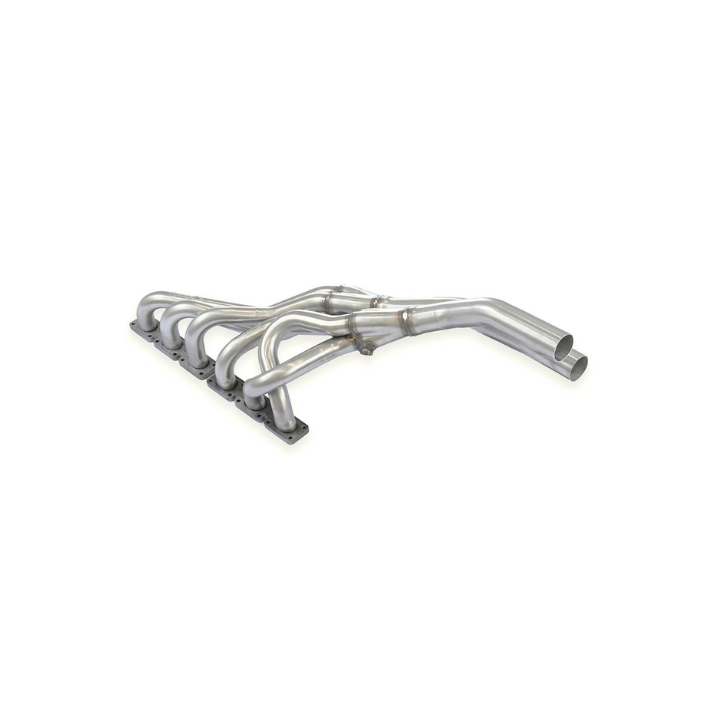

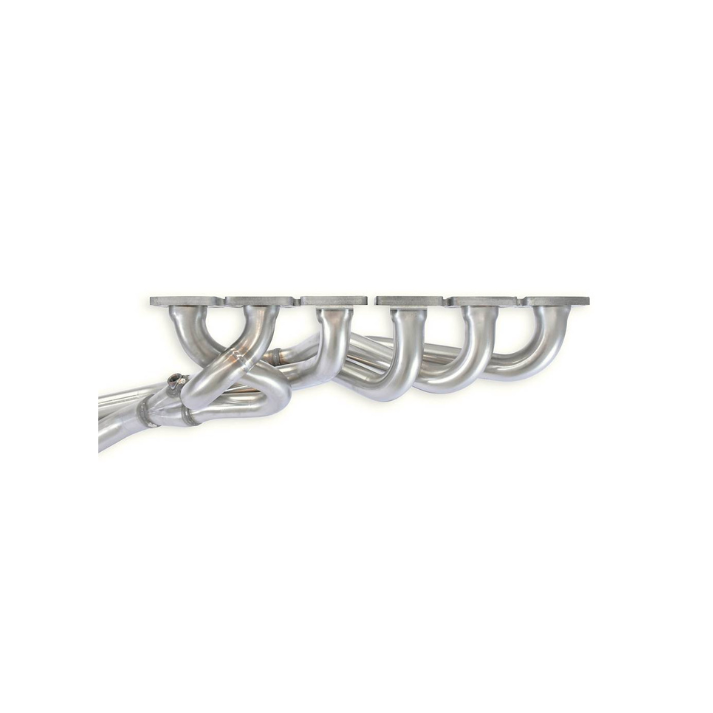

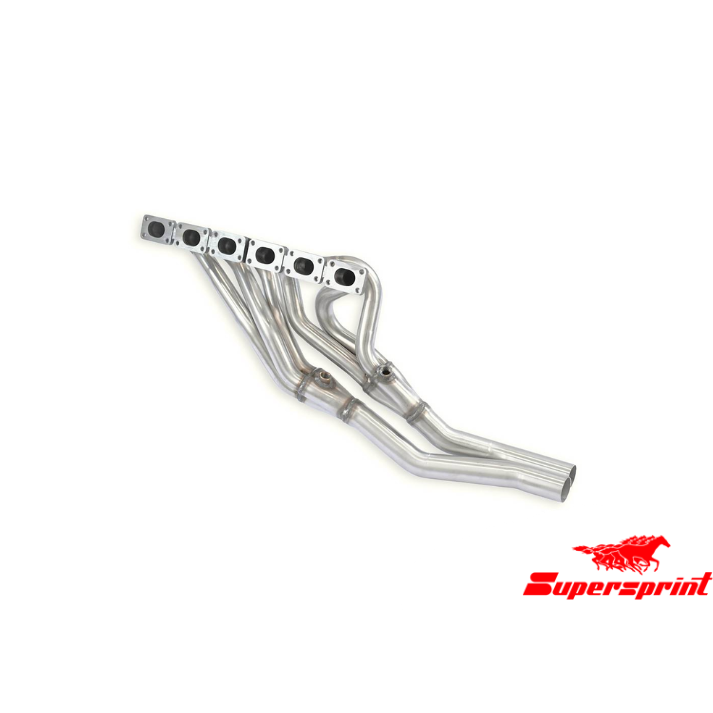

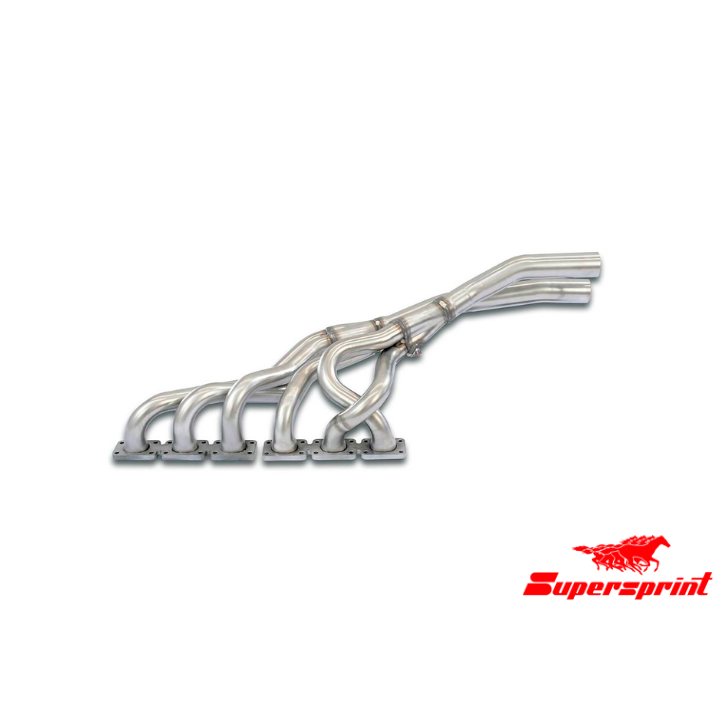

Supersprint’s long-tube performance headers for the six-cylinder E36 — 320i, 323i, 325i, 328i, the 323ti Compact, and the USA-model M3.

In their own words about this car: since 1991 they have developed headers and full exhausts for every one of these models, with headers drawn specifically for the LHD car and a separate set for RHD. Both are tuned to work best with the Supersprint HJS Motorsport twin-cat front section — but the modular design accepts the standard BMW catalytic converter as well.

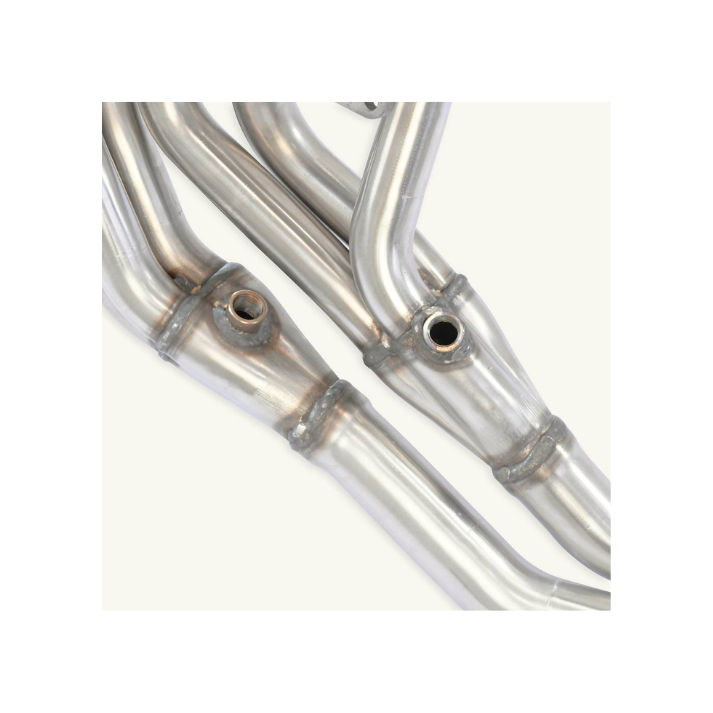

A threaded bung for the oxygen sensor is provided.

Supersprint list 785501 for:

• E36 320i 24v (Sedan / Coupé / Convertible) ’90 → ’94
• E36 320i (Sedan / Coupé / Convertible / Touring) ’95 → ’98
• E36 323i 24v (Sedan / Coupé / Convertible / Touring) ’95 → ’98
• E36 323ti Compact ’97 → ’98 and ’98 → ’00
• E36 325i 24v (Sedan / Coupé / Convertible / Touring) ’90 → ’95
• E36 328i 24v (Sedan / Coupé / Convertible / Touring) ’95 → ’98

• E36 323i (M52 engine — USA model) ’97 → ’99
• E36 328i (M52 engine — USA model) ’95 → ’99
• E36 M3 3.0i (S50 — USA model) ’94 → ’95
• E36 M3 3.2i (S52 — USA model) ’96 → ’99
• E36 M3 “Lightweight” Limited Edition (S52 — USA model) 1995

Supersprint require the 785411 connecting sleeve pipes kit alongside these headers when you run the standard cat. Ask us and we will add it. This is the LHD set. Supersprint’s RHD headers are 785401. Their published run on the 325i: standard 201.3 Hp at 5640 rpm and 263 Nm at 3830 rpm. With these headers plus the 785422 front resonator, the 042806 rear exhaust and the USA ECU: 212.2 Hp at 5800 rpm and 268 Nm at 5060 rpm.
