036135B: Front suspension bush kit
036135B: Front suspension bush kit
In Stock. Ready to Ship.
Couldn't load pickup availability
E36 · E36 M3 · E36 Compact · Z3036135B
80
ShA hardness
4–6
bushes
RED
compound
Front axle · grease included
01Overview
The front axle bushes — the ones you feel through the steering wheel.
80 ShA polyurethane — the red compound. StrongFlex match this grade to the hardness of the original metal-rubber bushes, so the car keeps the ride it left the factory with. What changes is what the bush is made of: polyurethane does not perish, does not tear out, and shrugs off oil, grease, salt and solvents.
Worn front lower arm bushes are why an E36 wanders under braking and why the wheel goes light in the middle. These four to six pieces put the steering back on its centre and stop the arm walking under load.
Every StrongFlex product ships with the correct grease for fitting.
80 ShA polyurethane — the red compound. StrongFlex match this grade to the hardness of the original metal-rubber bushes, so the car keeps the ride it left the factory with. What changes is what the bush is made of: polyurethane does not perish, does not tear out, and shrugs off oil, grease, salt and solvents.
Worn front lower arm bushes are why an E36 wanders under braking and why the wheel goes light in the middle. These four to six pieces put the steering back on its centre and stop the arm walking under load.
Every StrongFlex product ships with the correct grease for fitting.

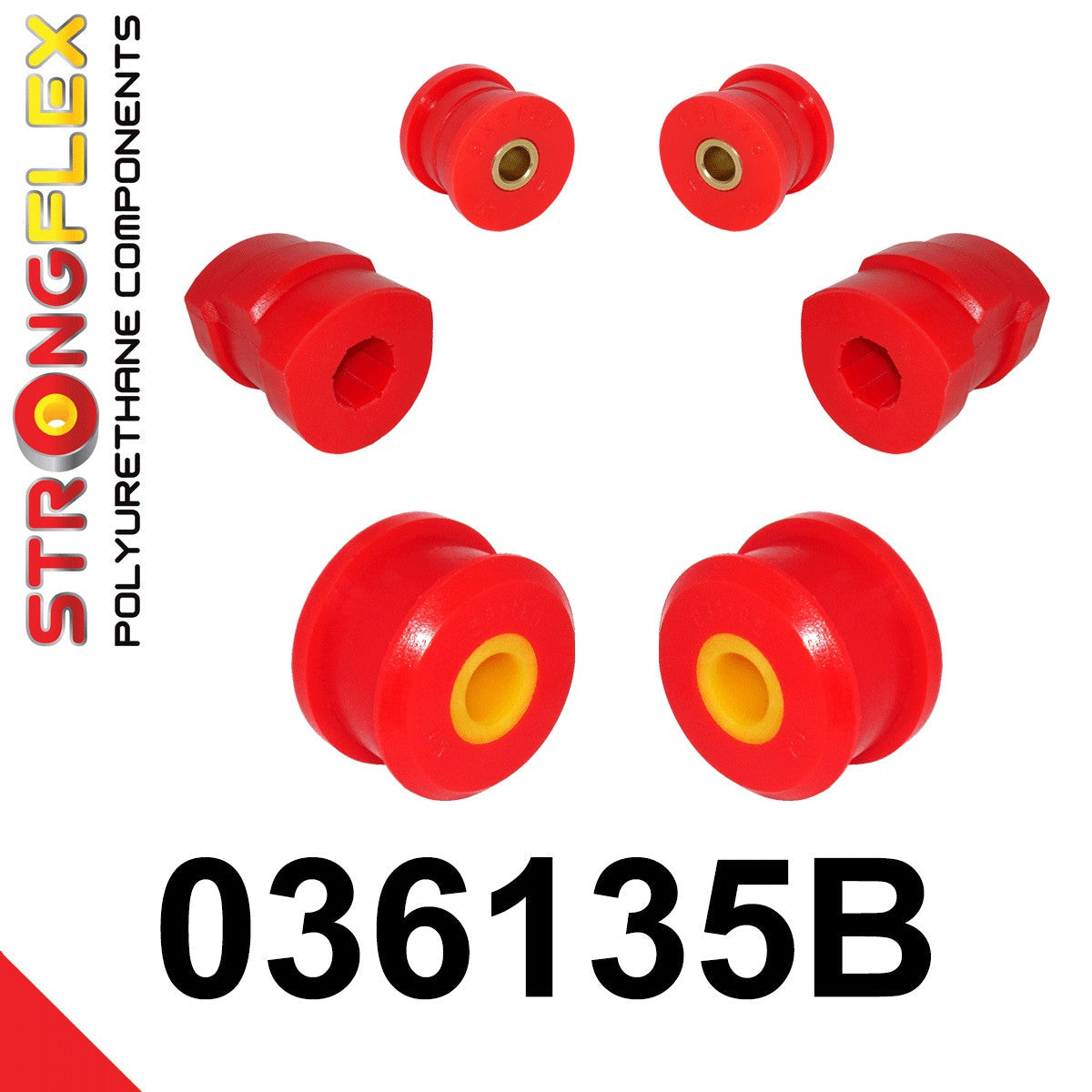

02Kit Contents
- 2x 031183B Front anti roll bar bush
- 2x 031195B Front lower arm bush – centric 60 mm or
- 2x 031369A Front lower arm bush – eccentric 60 mm SPORT or
- 2x 031737A Front lower arm bush – centric 60 mm E46 wishbone SPORT or
- 2x 031738A Front lower arm bush – eccentric 60 mm E46 wishbone SPORT
- 0/2x 031525A Front anti roll bar link bush SPORT
03Specification
Reference036135B
MaterialPolyurethane (PUR/PU)
Hardness80 ShA
red compound
red compound
ColourRed
black on request
black on request
Pcs per kit4 / 6
depends on 031525
depends on 031525
Quantity per car1 kit
GreaseIncluded

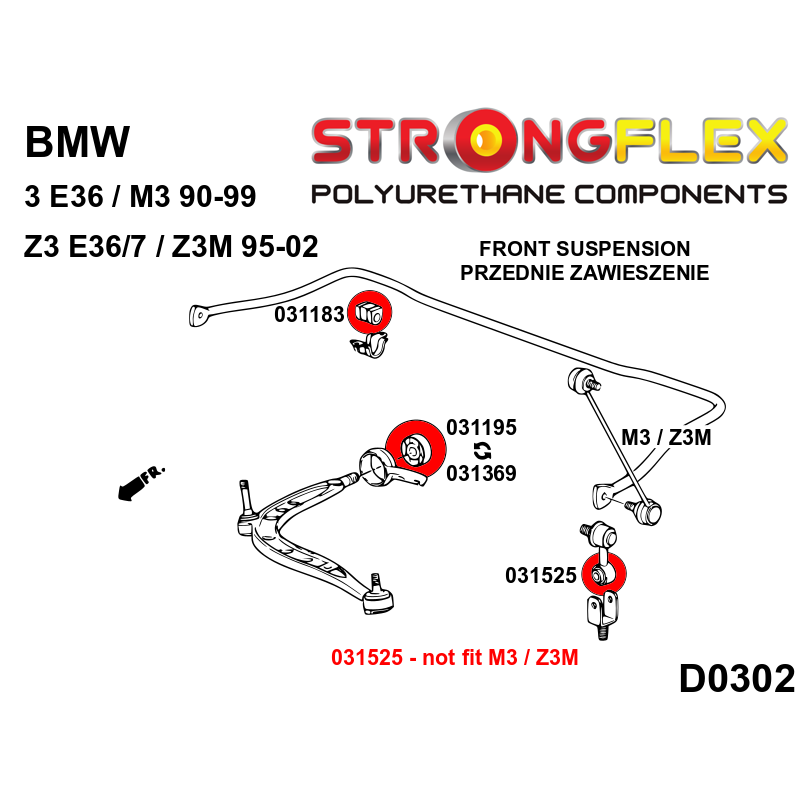

DiagramsD0302
04Fitment
Fits the whole E36 range — 3 Series E36 (90–99), E36 M3 (92–99), E36 Compact (93–00) and the Z3 E36/7 including Z3M (95–02).
One front axle, every body shell — the E36 front end is shared across the range.
One front axle, every body shell — the E36 front end is shared across the range.
05Options & Notes
Front wishbone bush — rear position
Four bushes fit that spot. Pick the one that matches the arm on your car:
031195centric 60 mm
standard E36 wishbone
standard E36 wishbone
031369eccentric 60 mm
standard E36 wishbone
standard E36 wishbone
031737centric 60 mm
E46 wishbone
E46 wishbone
031738eccentric 60 mm
E46 wishbone
E46 wishbone
The eccentric bushes shift the arm off the standard axis, which is how you get caster and camber back on a lowered car. The E46 wishbone versions are for E36s already converted to the later arm — a common drift build.
Anti roll bar link bush 031525
This bush fits only the link that mounts to the wishbone — not the link that runs from the anti roll bar to the shock absorber.M3 and Z3M: choose the option without 031525.
All other versions: choose the option with 2× 031525.
