036119A: Rear beam mounting bush kit SPORT
036119A: Rear beam mounting bush kit SPORT
In Stock. Ready to Ship.
Couldn't load pickup availability
E46 · X3 · Z4 · 98–16036119A
90
ShA hardness
4
bushes
YELLOW
compound
Rear subframe mounts · grease included
01Overview

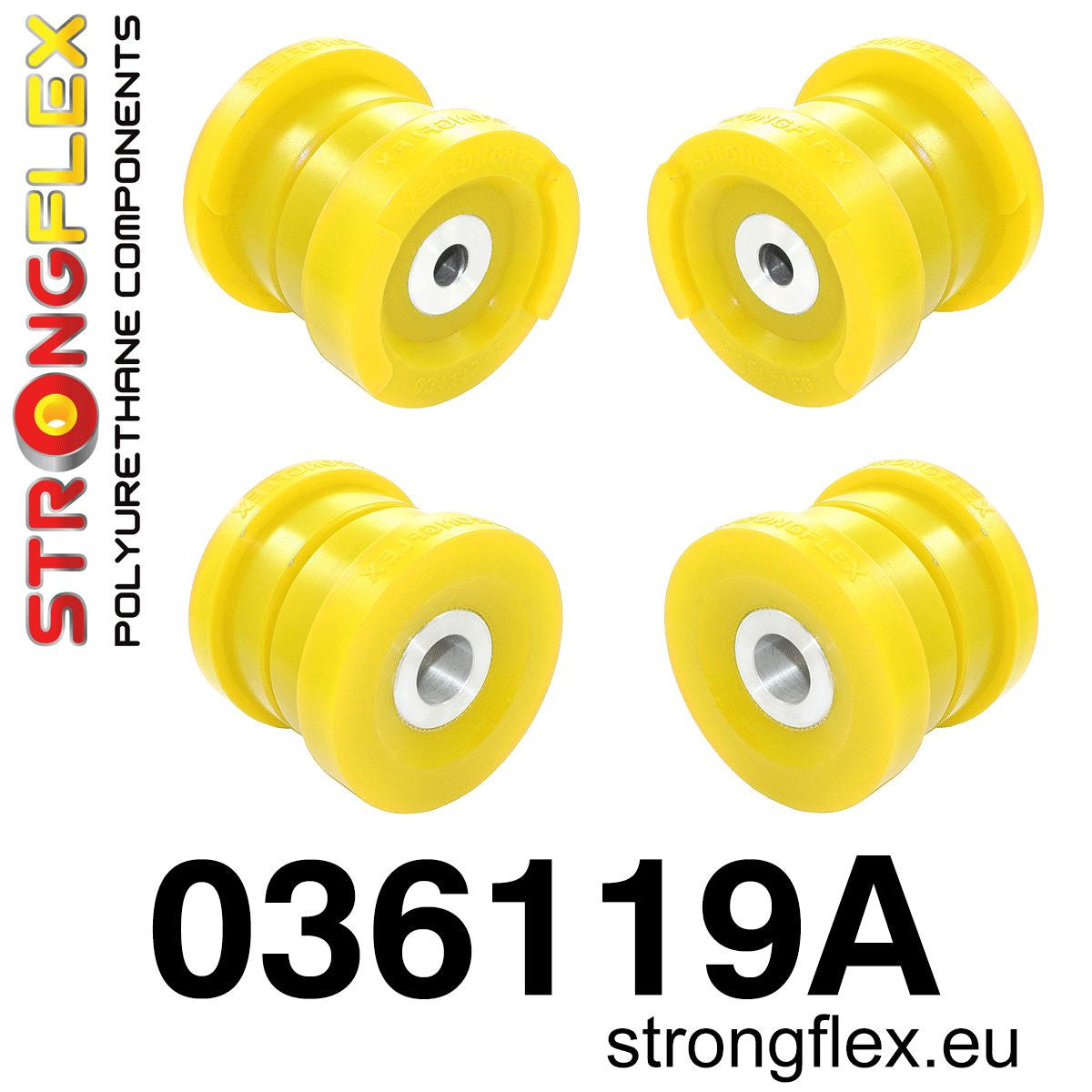

The four bushes that hold the rear subframe to the shell.
90 ShA polyurethane — the yellow SPORT compound. StrongFlex build this grade for tuned and lowered cars: the suspension gets noticeably stiffer, the geometry stops moving under load and the car holds its line when you push it.
This is the mount that takes the whole rear axle's load. When the original rubber softens, the subframe rocks under power and the car feels like it has a hinge in the middle of it. Four solid polyurethane bushes tie the axle to the body and the drive goes straight to the wheels.
Every StrongFlex product ships with the correct grease for fitting.
90 ShA polyurethane — the yellow SPORT compound. StrongFlex build this grade for tuned and lowered cars: the suspension gets noticeably stiffer, the geometry stops moving under load and the car holds its line when you push it.
This is the mount that takes the whole rear axle's load. When the original rubber softens, the subframe rocks under power and the car feels like it has a hinge in the middle of it. Four solid polyurethane bushes tie the axle to the body and the drive goes straight to the wheels.
Every StrongFlex product ships with the correct grease for fitting.
02In The Box
- 2x 031413A Rear subframe – front bush SPORT
- 2x 031414A Rear subframe – rear bush SPORT
03Specification
Reference036119A
MaterialPolyurethane (PUR/PU)
Hardness90 ShA
yellow SPORT compound
yellow SPORT compound
ColourYellow
black on request
black on request
Pcs per kit4
Quantity per car1 kit
GreaseIncluded
DiagramsD0319
04Fitment
Fits BMW 3 Series E46 (98–07) including the M3, X3 E83 (03–10), Z4 E85 / E86 (02–08) including the Z4 M, and Z4 E89 (09–16).
One kit covers the whole family — the E46 floorpan carries over into the X3 and both Z4 generations.
One kit covers the whole family — the E46 floorpan carries over into the X3 and both Z4 generations.
05Options & Notes
Fitting notes
Hand these to whoever fits it.
01The subframe has to come out of the car, so it is worth doing the rest of the rear axle on the bench in the same session — kit 036048A (or 036140A on an M3) covers the arms.
02Reinforce the subframe mounting points first. Polyurethane passes load straight into the floor instead of absorbing it, and StrongFlex's own advice for rally and drift cars is a strengthening plate or a brace before these go in. It is the standard E46 rear-end fix and worth doing while the axle is already out.
03Grease the bush surfaces on assembly — StrongFlex include the grease for it.
Red or yellow?
Red 80 ShA — close to the original bush hardness. Stability and precision without giving up comfort.Yellow 90 ShA — for sport and lowered suspension. Much stiffer, made for speed and hard driving.
Both compounds have the same resistance to weather, oil, grease, salt, acid and solvent — the difference is hardness alone.
