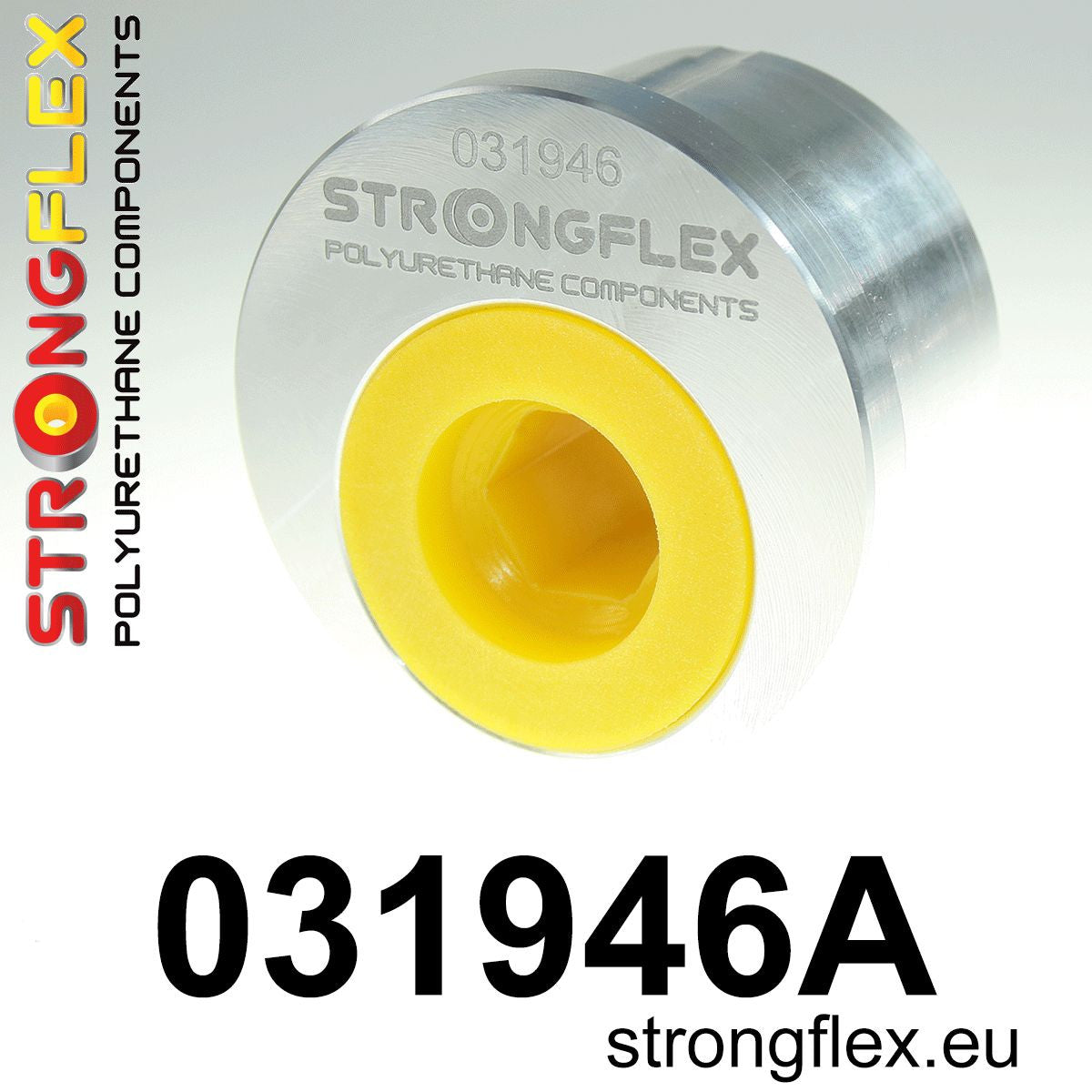

031946A: Front lower arm bush - eccentric 66mm SPORT

031946A: Front lower arm bush - eccentric 66mm SPORT

In Stock. Ready to Ship.
E46 · Z4 · 66 mm
031946A
66
mm bush
90
ShA hardness
2
per car
E46 · Z4
chassis
66 mm
arm bush
D0320 · S0339
diagrams
Eccentric front arm bush · sold per piece
01Overview
The eccentric 66 mm front lower arm bush — the one that gives you steering you can actually aim.

Because the bore sits off the axis, turning the bush moves the arm and hands you caster and camber that a standard bush cannot. On a lowered car that is how you get the front geometry back into a usable window.

90 ShA polyurethane — the yellow SPORT compound. StrongFlex build this grade for tuned and lowered cars: the suspension gets noticeably stiffer, the geometry stops moving under load and the car holds its line when you push it. The rigid build is what makes the steering so precise: there is nothing soft between the arm and the subframe, so the front end goes exactly where you point it.

Every StrongFlex product ships with the correct grease for fitting.
02In The Box
  • 1x 031946A Front lower arm bush – eccentric 66 mm SPORT
03Specification
Reference031946A
MaterialPolyurethane (PUR/PU)
Hardness90 ShA
yellow SPORT compound
ColourYellow
black on request
Bush diameter66 mm
Pcs per product1
Quantity per car2
OEM replaced31 10 7 838 575
GreaseIncluded
DiagramsD0320 · S0339 · S0340
04Fitment
Fits BMW 3 Series E46 (98–07) — RWD and Compact — plus Z4 E85 / E86 (02–08) and the Z4 M 3.2 (06–08).
E46 RWD E46 COMPACT Z4 E85 / E86 Z4M 3.2

Replaces BMW part 31 10 7 838 575. A car takes two — one each side.
05Options & Notes
What it is built for
This is StrongFlex's motorsport-grade front bush: drifting, time attack, track and rally. The payoff is steering precision; the trade is that a solid bush passes road vibration into the shell rather than soaking it up, so it feels harder than the rubber it replaces.
Fitting notes
01Diagram S0339 shows the fitting orientation — worth a look before pressing it in, because the offset only works one way round.
02Set the offset on the alignment rack, not by eye. Rotating the bush is the adjustment.
03Grease the bush surfaces on assembly. StrongFlex include the grease.
Order the pair. Running one eccentric bush against one standard one puts the two sides on different geometry, which no alignment will fix.
StrongFlex031946A
